Backed by a global network of 400+ trained and authorised agents, we write Massey Ferguson-specific calibrations that improve power, torque and fuel efficiency.
One Engine Family, Tractor And Combine
Massey Ferguson engines come from AGCO Power in Finland, and one family of blocks runs the length of the range: 4.4 and 4.9 litres in the 5S and 6S, 6.6 in the 7S, 7.4 in the 8S, and 8.4 in the 9S. The last two also go into the combines. Our model names say as much: the older machines are still listed as SISU, the name AGCO Power used until 2012. The 7.4 in an 8S.305 tractor and the 7.4 in a Beta 7260 combine are the same engine, and what our R&D team learns calibrating one carries over to the other.
Mapped From The 3600 To The 9S
We have been remapping Massey Ferguson since 2014. Our platform covers the 5S, 6S, 7S, 8S and 9S tractors, the 5600, 5700, 6600, 6700, 7600, 7700 and 8700 ranges, the 4700 Global series, and the Activa, Beta, Centora, Delta and 9000 Series combines. We also cover the older machines still earning their keep: the 3600s, 5400s, 6400s, 7400s, and 8400s, including the SISU-engined CR variants. Our UK R&D team writes every calibration in-house for the specific engine in front of them.
The Smart Business Case For Massey Ferguson Remapping
Fuel is the biggest running cost on most of the machines, and it is where a Massey remap pays first. By adjusting injection pressure and timing, we improve fuel efficiency by between 5% and 15%. The savings show up fastest where the engine is loaded and stays loaded: a cultivator in wet ground, a loaded trailer on a long pull uphill, a combine in a heavy crop.
Operators generally notice torque first. An 8S.305 goes from 1,280Nm to 1,450Nm, and a tractor that holds its revs through a heavy pull is one the driver doesn't have to keep changing down. An engine working in the middle of its range is quieter and cooler at the end of a twelve-hour day.

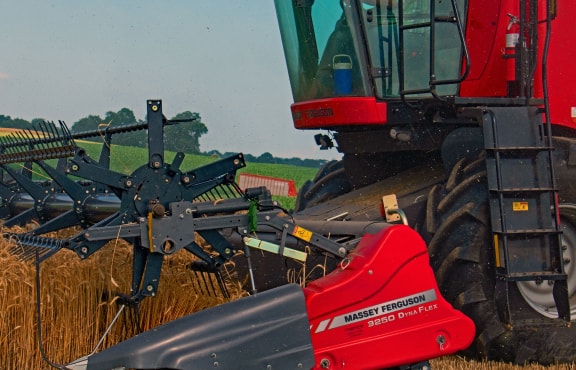

On the combines the argument is the harvest window. A Beta 7260 goes from 277hp to 350hp. Extra power at the drum is forward speed in a heavy crop, and in a week when the weather is against you, forward speed is what gets the field cut.
From a commercial standpoint, remapping a machine you already own is cheaper than investing in a new machine and just makes sense. A remapped 6S.180 makes 225hp from four cylinders, which is more than the biggest 7S, and the 7S is the six-cylinder range above it.
Massey equipment holds its value, so whatever you do to it should be reversible. Your original map stays on our server, and you can go back to it whenever you want. Crucially, none of the improvements come at the cost of reliability. We calibrate within the safe operating limits of the engine and the driveline behind it, because there is no sense in producing torque a transmission was never built to take. Every remap starts with a full diagnostic health check; we back up the original map before we touch anything, and the software carries a lifetime warranty.
Understanding Massey Ferguson Engine Platforms
Most tractor manufacturers buy their engines in. AGCO owns its engine business outright, which is why a Massey Ferguson, a Valtra and a Fendt can share a block. The plant at Linnavuori near Nokia has been building diesels for close to seventy years, as Sisu Diesel until 2008 and as AGCO Power since 2012. For remapping, ownership matters in a practical way: the engine families are few, well documented, and spread very thinly across a wide power range.
Power Where It's Needed
On the combines, our platform publishes power gains, and the torque figures are still in development, so we have quoted power alone. The Delta 9380 carries no published figures at all. That calibration is written to the machine and to what you need from it, so the figures come out of that conversation.
Example Gains From Our Massey Ferguson Calibrations
Figures taken from our published Massey Ferguson model pages. Actual gains depend on the specific machine, its condition and the work it does.
Proven Engines, Improved
The 6S runs a 4.9-litre four-cylinder up to 180hp, which Massey Ferguson calls the most powerful four-cylinder on the market. The 7S runs a 6.6-litre six. The 8S runs the 7.4. The 9S runs the 8.4 LXTN, which Massey Ferguson rates at up to 425hp and 1,750Nm. Below them, the 5S and the Global series machines run the smaller 3.3 and 4.4-litre units in the same family.
What matters for remapping is how much of the range sits on a single engine. Massey Ferguson sells the 7.4 at 205hp in an 8S.205 and at 305hp in an 8S.305, with the 225, 245, 265 and 285 filling in the ground between them. Same block, 100hp between the bottom of that spread and the top. The difference between them is calibration and turbocharging.
Our figures follow from that. We take an 8S.205 from 205hp to 248hp, which is past the factory 8S.245 on the identical engine block. We take an 8S.245 to 290hp, close to the factory 8S.305 at the top of the range. And we take the 8S.305 itself to 350hp, which is more than Massey Ferguson asks of that 7.4 anywhere in its own line-up.
The 8.4 in the 9S behaves the same way. A 9S.425 goes to 478hp and 1,950Nm. The same 8.4 sits in the 9795 combine, where the factory rating is lower again.
The four-cylinder is the one that surprises people. A 6S.180 at 225hp and 990Nm is doing work that Massey Ferguson builds a six-cylinder tractor to do, on an engine two cylinders shorter and a good deal lighter over the front axle.
The improvements are real, but not unlimited, and the engine isn't the only part of the machine we consider. The transmission, the axles and the linkage all have design limits of their own, and a calibration that ignores them makes no sense. Seeing the complete picture is what our R&D team focus on.
Newer Massey tractors do not run on one fixed power curve. The engine software carries three torque and boost curves and moves between them depending on what the tractor is doing, using conditions such as PTO engagement and wheel speed to decide. Massey Ferguson calls this Engine Power Management or EPM, and on some models the top curve is worth up to an extra 30hp. The catch is when you get it. A tractor on the drawbar in heavy draft work is often not on that curve at all.
One of the most common jobs we are asked for on a Massey is a boost lock, also known as an EPM lock. We remap the ECU so the tractor holds the maximum EPM curve at all times, whatever it is doing and whatever the factory conditions would otherwise allow. The power figure is Massey Ferguson's own top rating. What changes is that you get it in the work where the tractor would not normally have it.
Operators like this one because the number is the factory maximu, the tractor is not being asked to make more than Massey Ferguson built it to make; it is just being allowed to make it all day. For anyone cultivating in wet ground, pulling a loaded trailer up a bank or working a loader hard, that is the work where the top curve was missing.
The same rules apply as on any other job. We calibrate within the safe operating limits of the engine and the driveline behind it, the original map is backed up before we touch anything, and the software carries a lifetime warranty. An EPM lock can be done on its own, or alongside a full calibration if you want the tractor to go further than the factory ceiling. Your agent will talk through which suits the machine and the work it does.
Can't find your machine? Our R&D team develops bespoke calibrations for Massey Ferguson machines not yet listed on our platform, and for the AGCO Power engines fitted to equipment built by somebody else entirely. Get in touch and we will talk it through.
Contact us
How We Remap Your Massey Ferguson
A Full Health Check
Every job starts with a full diagnostic health check. If there is a fault sitting on the machine, we want to know before we touch the software. Once it has a clean bill of health, we back up the original map to our own server, so the machine can be returned to its factory calibration at any point in the future.
Minimal Downtime

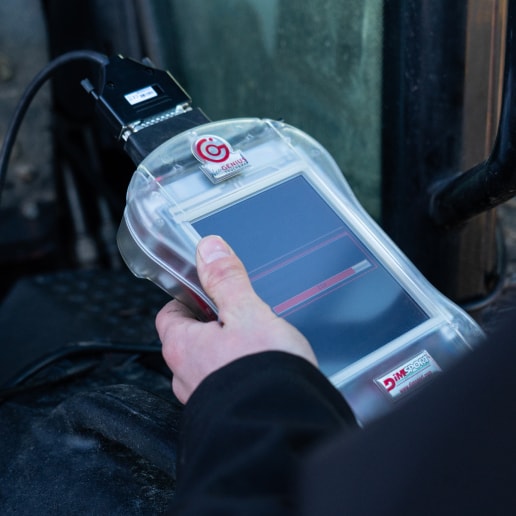

Calibration goes through the OBD port on most Massey Ferguson machines, though some ECUs require bench access. Your agent will confirm which applies when we book the work. Most installations are completed within a few hours.
Assured Improvements
Where possible, we then verify tractors on a PTO dynamometer. Many of our agents can PTO test on the farm, so the machine does not need to move.
If a PTO check isn't available, you can be assured you're getting the quoted improvements, as our R&D team tests all calibrations.
Mapped To Your Needs
A combine has no PTO to measure through, so we handle it differently. Your agent will go through what you need from the machine before anything is booked: forward speed in a heavy crop, acres in a day, how it copes on a hill, fuel over a tank. You agree what success looks like up front, and the machine is judged on its own work in your own crop.
Flexible Service For Massey Ferguson Operators
Most Massey remaps are carried out where the machine works. We have a network of 400+ trained and authorised agents across the UK and internationally, and your local agent arrives with everything needed for the diagnostic check, installation, and verification. In the middle of drilling, or with a combine booked out to three farms in a fortnight, that matters, because the machine is back at work the same day.
If you are based in the South West, or not too far from our HQ just outside Bristol, you are welcome to bring the machine to us. Our workshop has full dyno facilities and you get direct access to the R&D team who wrote the calibration.
Operators running several Massey machines can have the work scheduled across them. On a farm, the sensible time is ahead of the season, and on the combines that means the spring, not the week before you want to start cutting. Talk to us about phasing it around your year.
Become An Authorised Massey Ferguson Remapping Agent
Massey Ferguson is one of the most common badges in a British farmyard, and the coverage runs from a twenty-year-old 6400 up to a current 9S. That is a broad customer base from one training course.
Our agents are backed by the UK R&D team who write every calibration, so you are never installing a generic file. You get the full range of Massey Ferguson calibrations, comprehensive training, and ongoing technical support from Bristol. We are also the sole UK distributor for Dimsport dynamometers, so our agents work with the best equipment available.
We are selective about who we take on. We are looking for qualified engineers and equipment specialists who can uphold the standards our customers expect.
Trusted By Farms And Contractors
- Remapping agricultural equipment since 2014
- 400+ trained and authorised agents, UK and international
- Lifetime warranty on every calibration we write
- UK-based R&D team writing every calibration in-house
- Sole UK distributor for Dimsport dynamometers
Common Questions About Massey Ferguson Remapping
AGCO does. The engines come from AGCO Power in Finland, which built them under the Sisu Diesel name until 2012 and still supplies Valtra and Fendt as well as Massey Ferguson. Some of our older model listings still carry SISU in the name for that reason. Whichever badge is on the rocker cover, we remap it.
Yes. Our platform covers the Activa, Beta, Centora, Delta and 9000 Series machines. On a Beta 7260, we take 277hp to 350hp. Combine torque figures are still in development on our platform, so we quote power, and your agent will talk you through what that means for your crop and header width.
A remap modifies the engine software, and manufacturers can decline warranty claims related to it. Most of the machines we work on are past the manufacturer warranty period. If yours is still under warranty, speak to your dealer first, then to us, and we will tell you whether it is worth waiting.
No. Whether the machine is a Dyna-4, Dyna-6, Dyna-VT, or Dyna-7, we calibrate it to the torque the driveline was specified to carry. We will not write a map that puts more through a transmission than it was built for, even where the engine could produce it. Protecting the driveline is part of the job.
No. We work within the safe operating limits of the engine and everything behind it. Every job begins with a diagnostic health check, and if the machine has a problem, we will tell you before we touch the software.
Engine Power Management is Massey Ferguson's own system. Newer tractors carry three torque and boost curves and switch between them on conditions like PTO engagement and wheel speed, so the top curve is only available some of the time. An EPM lock, or boost lock, is a remap that holds the tractor on that top curve permanently, so the factory maximum is there in the work where you would not normally get it. Plenty of customers have the lock done on its own. You can also combine it with a full calibration to take the tractor beyond the factory ceiling, and your agent will tell you what makes sense for your machine.
Between 5% and 15% on most machines. The biggest savings come from engines that spend their working life under load, so heavy draft work and loaded haulage show it soonest. Light work on a big tractor will show less.
Typically within a few hours, including the diagnostic check and the verification afterwards. Most machines are back at work the same day.
On a tractor, where possible, you get a measured before-and-after on a PTO dynamometer, and many of our agents can do this on the farm. On a combine, where there is no PTO to measure through, your agent agrees on the measures with you before the work: forward speed in a heavy crop, acres in a day, fuel over a tank. Our R&D team tests every calibration we write before it goes anywhere.
Often more so. A 6480 or a 7480 that is long out of warranty and doing the same work it always did is exactly the machine a remap suits, and the money goes a lot further than it would towards a newer one. We take a 6499 from 215hp to 250hp and 1,080Nm.
We back up your original map on our dedicated server and can reinstate it whenever you want, so you can sell the machine on its factory calibration.
Almost certainly. With 400+ agents in the UK and internationally, most operators have one within a reasonable distance. Use the agent finder to check.
Massey Ferguson Remap Catalogue
Ranges covered: 3000 Series, 4000 Series, 5000 Series, 5S, 6000 Series, 6S, 7000 Series, 7S, 8000 Series, 8S, 9000 Series, 9S, Activa, Beta, Centora and Delta.
If your machine is not listed, it does not mean we cannot help. Every calibration we write is developed in house for the specific engine variant, and that includes variants we have not published figures for yet. Get in touch and we will tell you what is possible.
159 engines available
No engines match your search.
Ready To Get More From Your Massey Ferguson?
One engine family covers the whole range, from a four-cylinder 6S to a 9S.425 and on into the combines. That leaves headroom on almost every machine in the yard, and it is yours to use.
